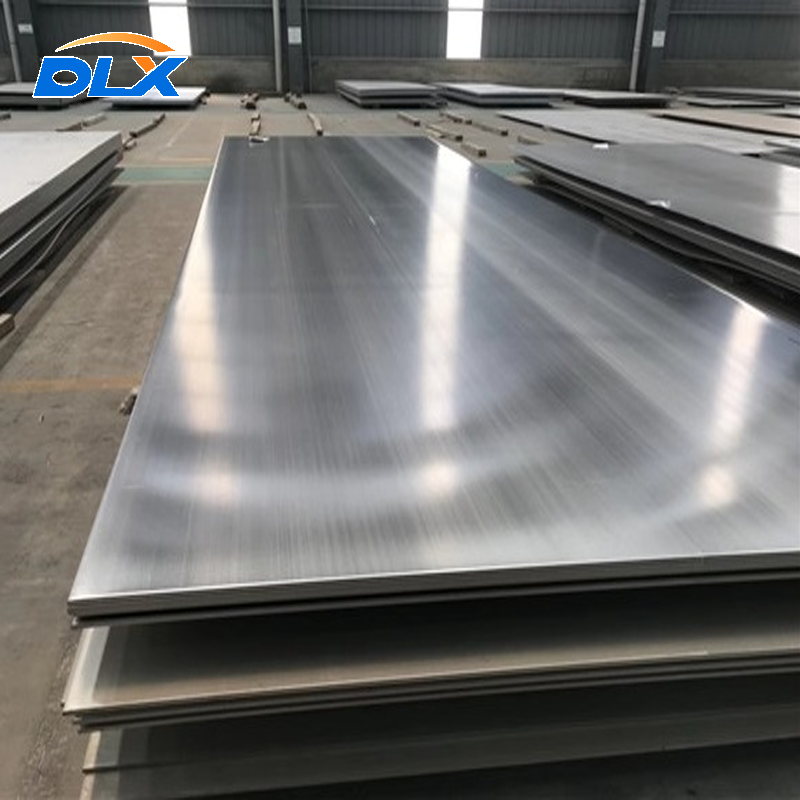

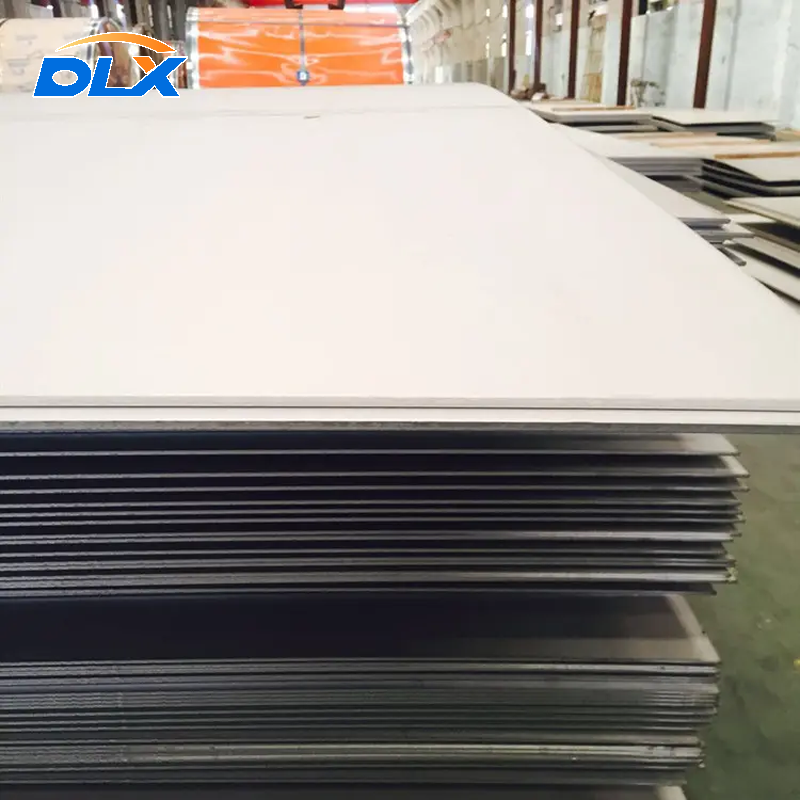

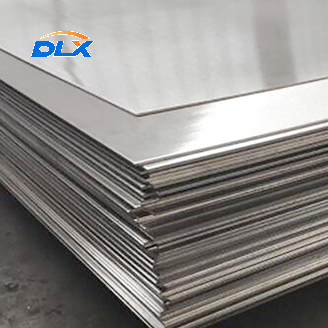

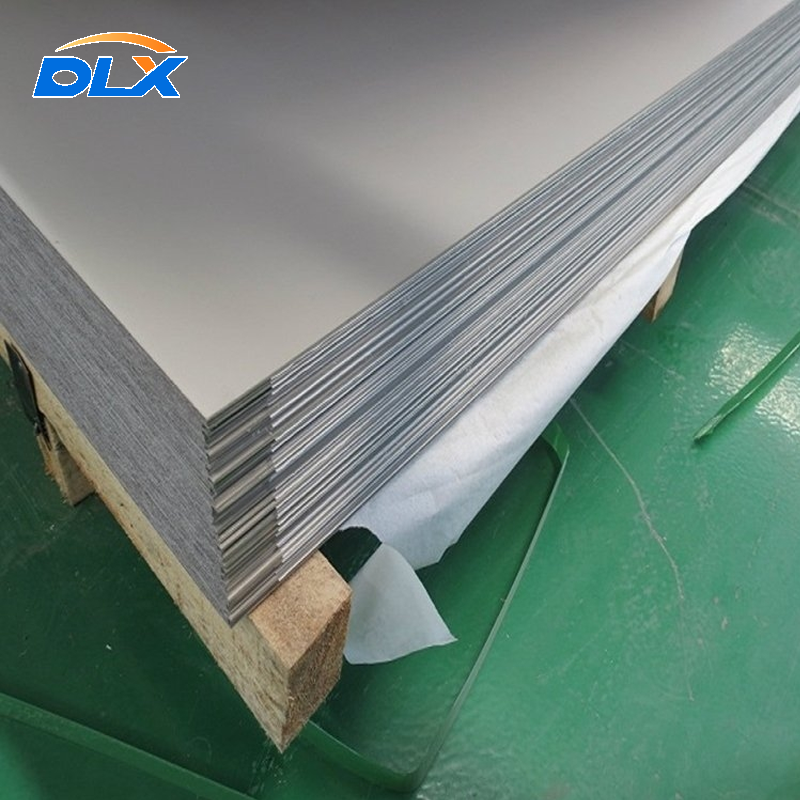

Monel K500 Alloy Steel Plate
Classification : Monel Alloy
Grade: Monel k-500 /2.4375/ N05500
Type: Nickel Sheet&Plate
Thickness: 0.5mm- 50mm
Width: 500mm - 1500mm
Length: 700mm - 6000mm
Delivery State: Cold Rolled, Hot Rolled
Finish: 2B, No.1, No.2, No.4, BA, 6K, Mirror Finished, 8K, Hair Line with PVC
Tolerance: ±1%
15161597807
15161597807
15161597807
delixin02@delixinsteel.com
Contact Us

Product Description

Monel 400 is the most versatile and comprehensive corrosion resistant alloy. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, and also has excellent corrosion resistance to hot concentrated alkali liquids. At the same time, it is also resistant to corrosion of neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of the alloy is that it generally does not produce stress corrosion cracks and has good cutting performance.

Monel K500 is a precipitation-hardenable Ni-Co alloy that combines the excellent corrosion resistance characteristic of Monel 400 with the added advantage of greater strength and hardness. These amplified properties, strength and hardness, are obtained by adding AL and Ti to the Ni-Co base and by a thermal processing used to effect precipitation, typically called age hardening or aging. When in the age-hardened condition, Monel K-500 has a greater tendency toward stress-corrosion cracking in some environments than Monel 400. Alloy K-500 has approximately three times the yield strength and double the tensile strength when compared with alloy 400. Plus, it can be further strengthened by cold working prior to precipitation hardening. The strength of this nickel based alloy is maintained to 1200° F but stays ductile and tough down to temperatures of 400° F. Its melting range is 2400-2460°F.


MonelMonel 400, Monel   k500
Thickness0.3-200mm
Width40mm-600mm,    1000mm, 1219mm, 1500mm, 1800mm, 2000mm,    2500mm, 3000mm, 3500mm, etc
Length2000mm,    2500mm, 3000mm, 5800mm, 6000mm, 12000mm, etc
StandardASTM,   JIS, AISI, GB, DIN, EN
SurfaceBA, 2B, NO.1,   NO.4, 4K, HL, 8K
CertificationISO, SGS, BV and   so on.
TechniqueCold Rolled, Hot   Rolled
EdgeMill Edge    Slit Edge UNS No Generic term Composition
ApplicationHigh temperature   components such as turbine blades, guide vanes, turbine disks,
high pressure compressor disks,machine manufacturing and   combustion chambers used in the manufacture of aviation, naval and industrial   gas turbines


UNS NOINGREDIENTGENERIC TERMINGREDIENT
2.436N04400MONEL40063Ni-32Cu-1Fe-0.1C
2.4375N05500MONEL K-50063Ni-30Cr-1Fe-3Al-0.6Ti-0.1C

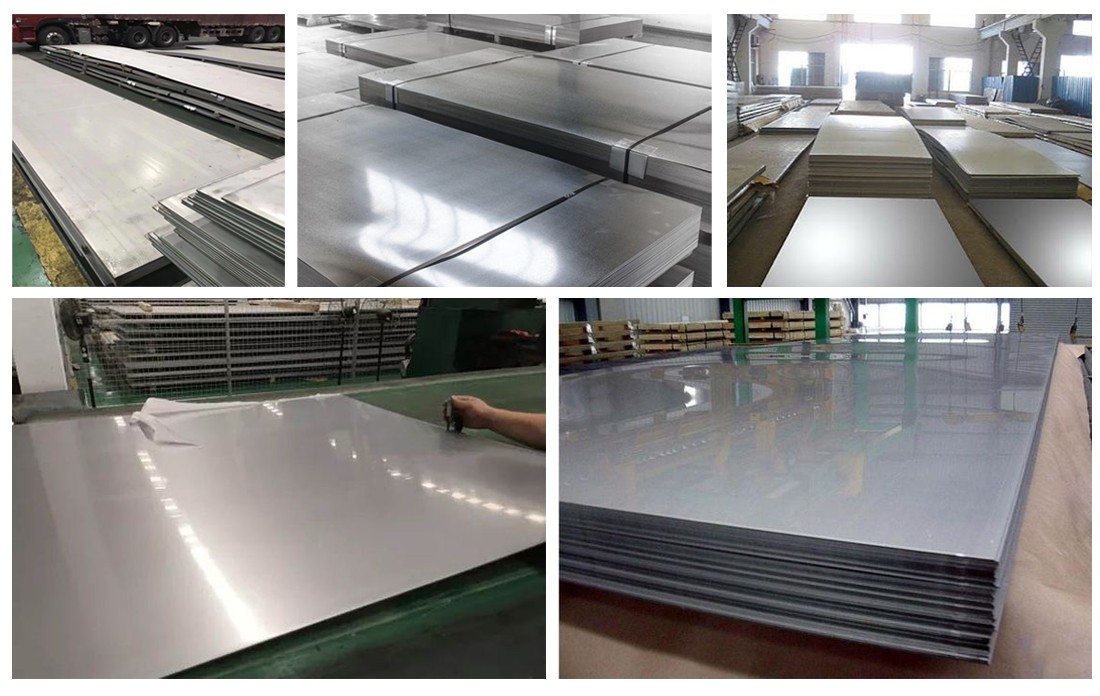

Product Show

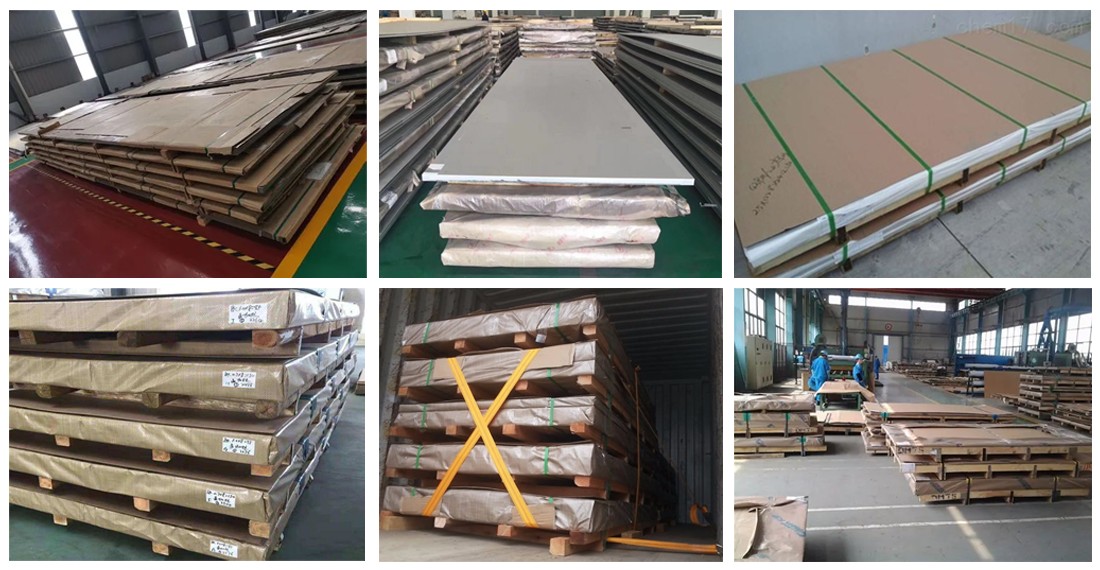

Packaging And Shipping

Export standard package, bundled or be required.

The inner size of container is below:

20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
