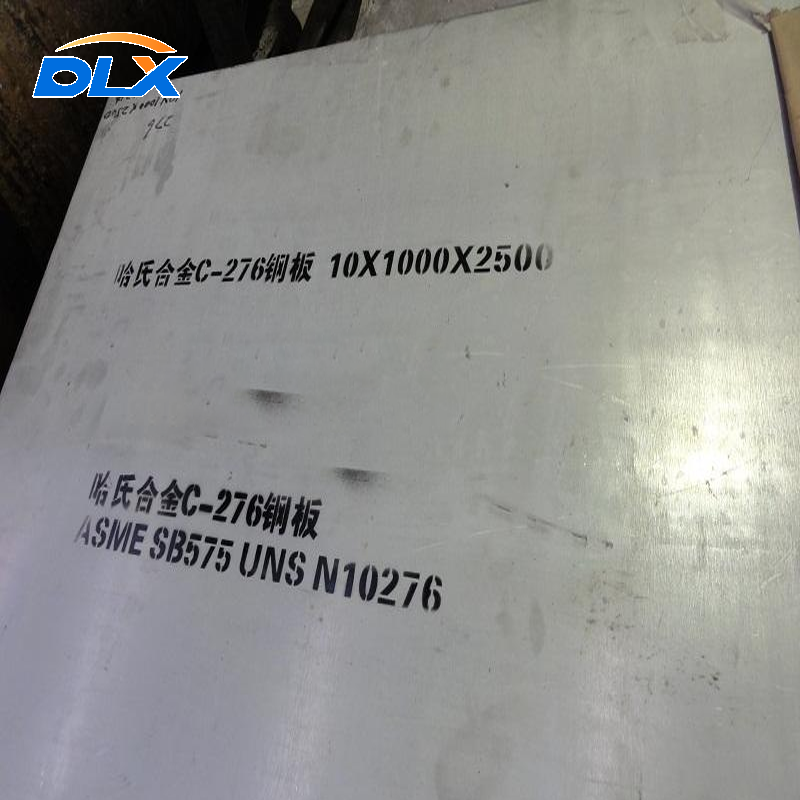

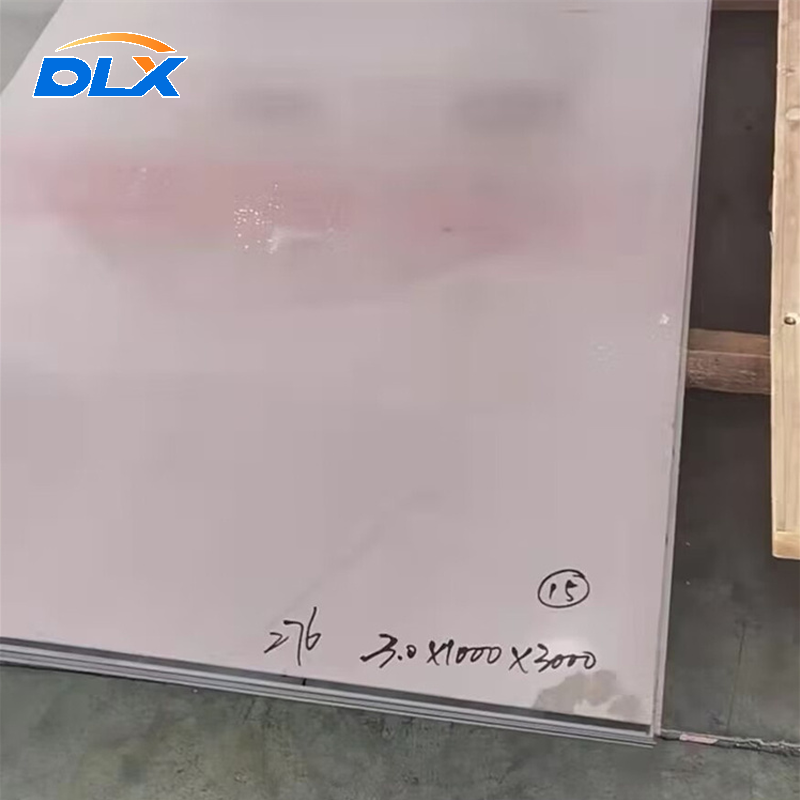

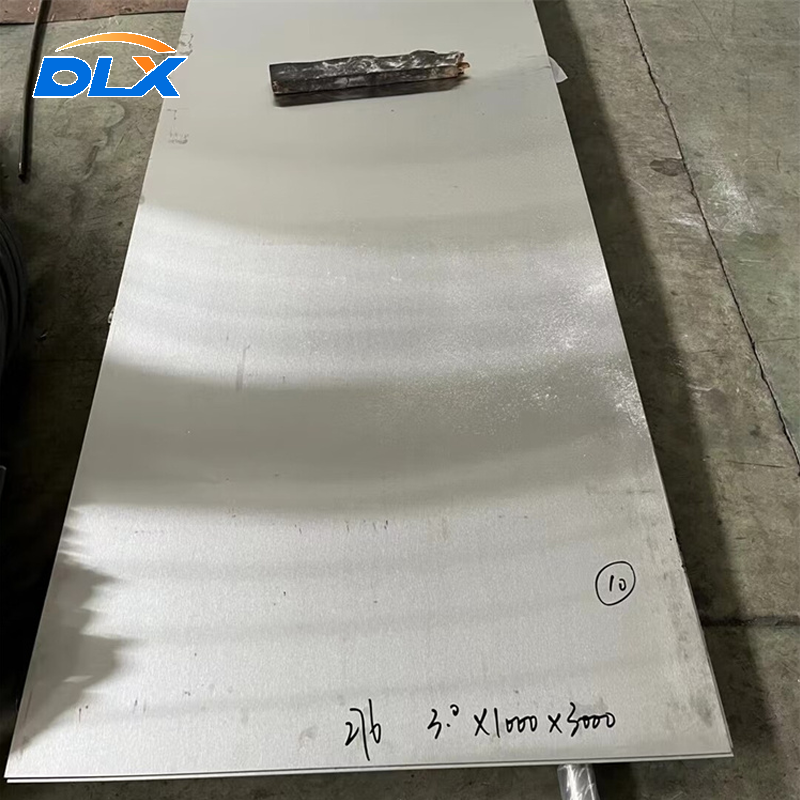

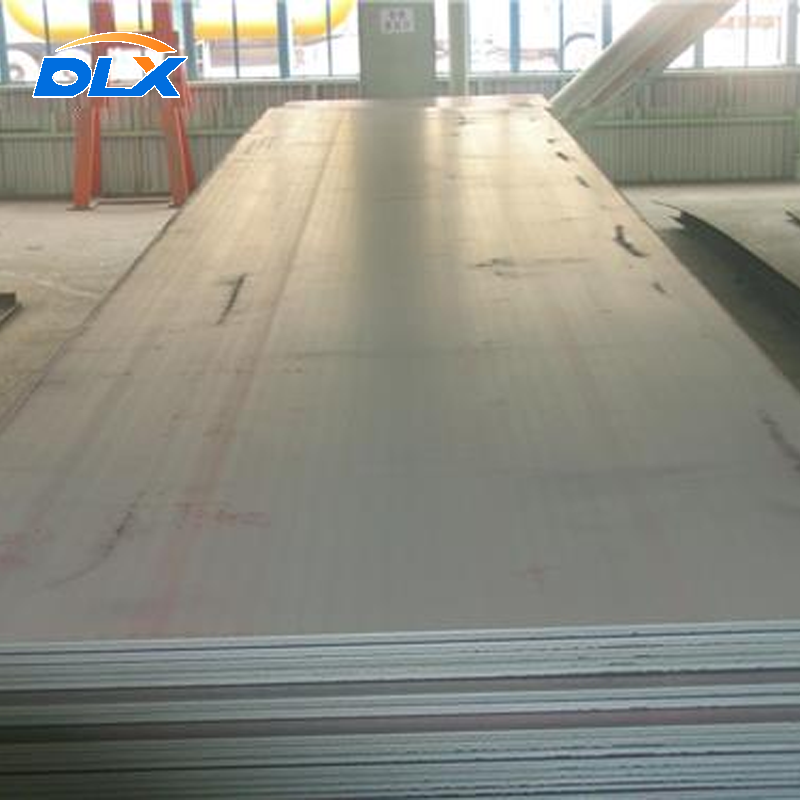

Hastelloy C-276 plate

Classification : Hastelloy Alloy

MOQ: 1 ton
Payment: T/T, According to customer requirements
Price terms: FOB, CRF, CIF, EXW all acceptable
Delivery: within 7-15 days or considering the quantity
Transport: By bulk or Containers
Support video inspection & On-site factory inspection

15161597807

15161597807

15161597807

delixin02@delixinsteel.com

Product Description

Hastelloy plates are suitable for use in a variety of chemical industries containing oxidizing and reducing media. The higher molybdenum and chromium contents make the alloy resistant to chloride ion corrosion, and the tungsten element further improves the corrosion resistance. At the same time, C-276 Hastelloy tube is one of only a few materials resistant to moisture chlorine, hypochlorite and chlorine dioxide solution. It has high concentration of chloride solution such as ferric chloride and copper chloride. Significant corrosion resistance.

Hastelloy	HastelloyC276, HastelloyC2000, HastelloyC22, HastelloyC4, HastelloyG30, HastelloyB2, HastelloyB3, Hastelloy X
Outer Diameter	6-2500mm, (3/8″-100″)
Thickness	0.3-150mm, (SCH10-XXS)
Length	2000mm, 2500mm, 3000mm, 5800mm, 6000mm, 12000mm, etc
Standard	ASTM, JIS, AISI, GB, DIN, EN
Certification	ISO, SGS, BV and so on.
Application	High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks, machine manufacturing andcombustion chambers used in the manufacture of aviation, naval and industrial gas turbines

DIN/EN	UNS No	Generic term	Composition
2.4819	N10276	Hastelloy C-276	57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C
2.461	N06455	Hastelloy C-4	65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C
2.4602	N06022	Hastelloy C-22	56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C
2.4675	N06200	Hastelloy C-2000	59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C
2.4665	N06002	Hastelloy X	47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B
2.4617	N10665	Hastelloy B-2	69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C
2.466	N10675	Hastelloy B-3	65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C
	N06030	Hastelloy G-30	43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C
	N06035	Hastelloy G-35	58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C

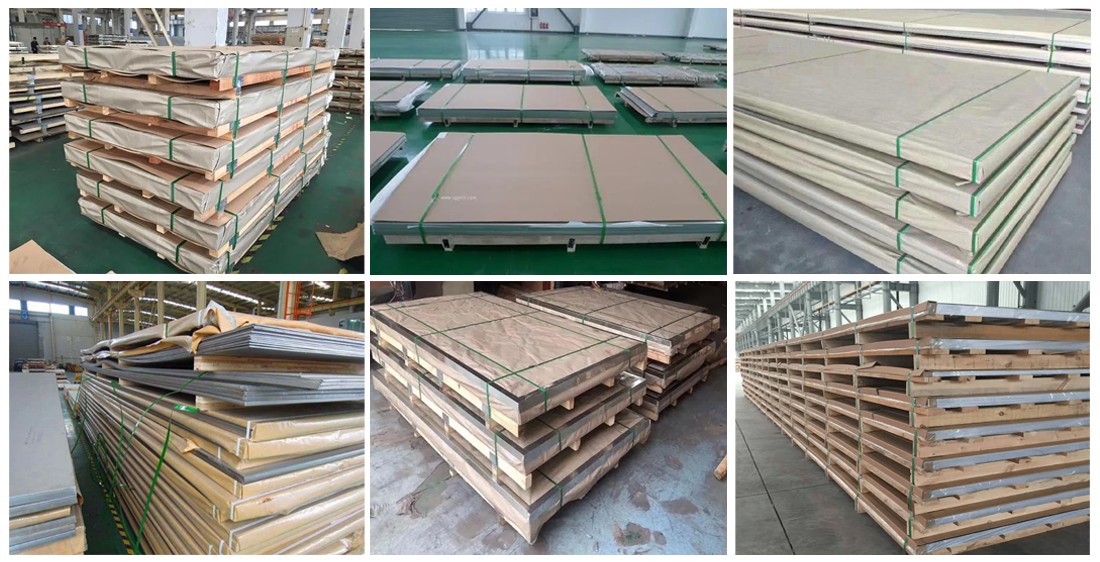

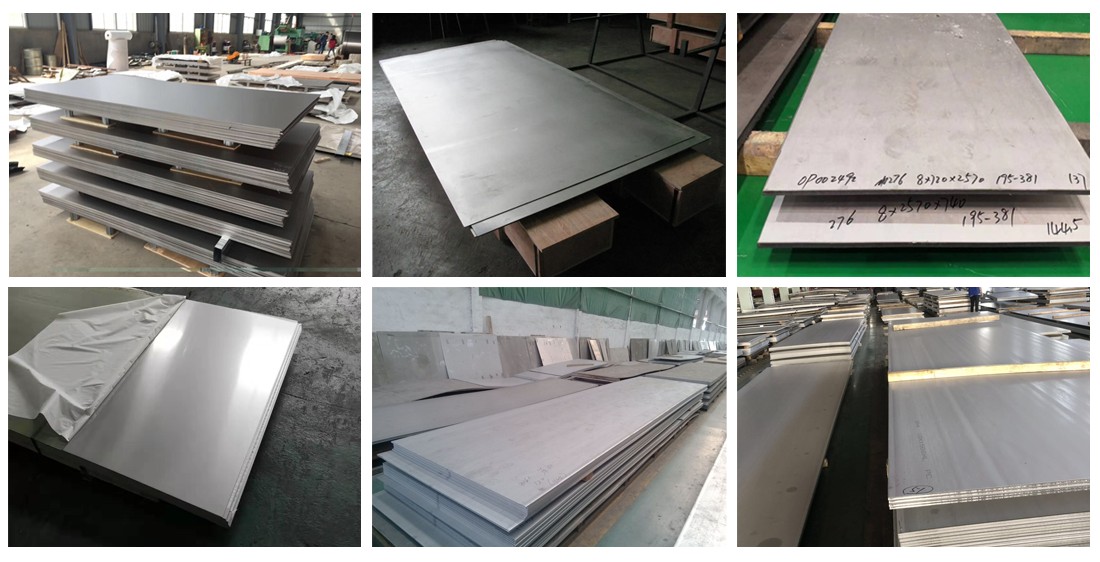

Product Show

Classification

Hastelloyalloy is mainly divided into three series of B, C and G. It is mainly used in the case of iron-based Cr-Ni or Cr-Ni-Mo stainless steel, non-metallic materials and other strong corrosive media.

Hastelloy grade

In order to improve the corrosion resistance and cold and hot processing properties of Hastelloy, Hastelloy has undergone three major improvements, and its development process is as follows:

B series: B→B-2(00Ni70Mo28)→B-3

C series: C→C-276(00Cr16Mo16W4)→C-4(00Cr16Mo16)→C-22(00Cr22Mo13W3)→C-2000(00Cr20Mo16)

G series: G→G-3(00Cr22Ni48Mo7Cu)→G-30(00Cr30Ni48Mo7Cu)

The most widely used are the second generation materials N10665 (B-2), N10276 (C-276), N06022 (C-22), N06455 (C-4) and N06985 (G-3).
